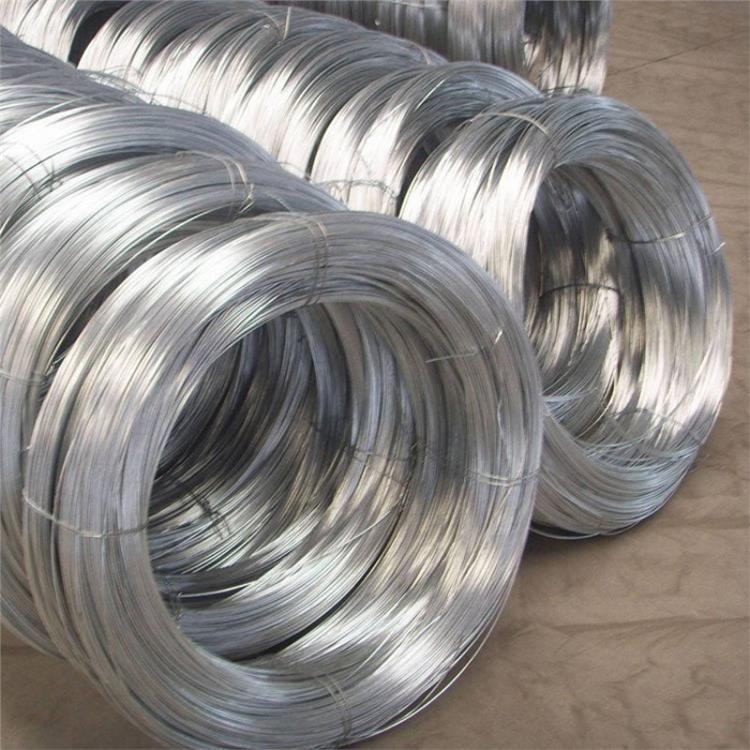

Precision Soft Magnetic Alloy Wire: 1J79 (Permalloy), 1J85, 3J53 — Properties & Manufacturing

<!-- wp:image {"id":0} --> <figure class="wp-block-image"><img src="/images/articles/precision-alloy-wire-coil.jpg" alt="Precision Soft Magnetic Alloy Wire - 1J79 Permalloy, 1J85, 3J53" /></figure> <!-- /wp:image -->

<h2>Precision Alloy Wire: Enabling Next-Generation Electronics, Sensors &amp; Instrumentation</h2>

<p>In the world of miniaturized electronics, sensitive instrumentation, and precision sensing, <strong>soft magnetic alloy wire</strong> plays an invisible yet indispensable role. From the relay coils in your smartphone to the fluxgate sensors guiding aircraft, from the magnetic shielding in medical devices to the elastic elements in precision frequency controls — these iron-nickel based precision alloys make modern technology possible.</p>

<p>This comprehensive guide covers three flagship soft magnetic alloy wire grades manufactured by Hangbo Alloy: <strong>1J79 (Permalloy / Нз79КМ)</strong>, <strong>1J85 (Нз80КМФ)</strong>, and the constant-elasticity alloy <strong>3J53 (32НДК)</strong>.</p>

<h2>1J79 (Permalloy / Нз79КМ) — The High-Permeability Workhorse</h2>

<p><strong>1J79</strong> (also internationally known as <strong>Permalloy 79</strong>, <strong>ASTM A753 Type 4</strong>, Russian designation <strong>Нз79КМ</strong>) is an iron-nickel soft magnetic alloy containing approximately 79% nickel, 17% iron, plus molybdenum (3–4%) and minor additions. Its defining characteristic is <strong>extremely high initial permeability (μᵢ ≥ 25,000)</strong> and <strong>maximum permeability (μₘ ≥ 100,000)</strong>.</p>

<p><strong>Why 1J79 Wire Is Uniquely Valuable:</strong></p> <ul> <li><strong>Ultra-high permeability</strong> enables compact magnetic cores with minimal turns — critical for miniaturized transformers and inductors</li> <li><strong>Low coercivity (Hc ≤ 2.4 A/m)</strong> means near-zero hysteresis loss — essential for high-frequency AC applications</li> <li><strong>Low core loss</strong> at frequencies up to 100 kHz makes it ideal for switching power supplies and audio transformers</li> <li><strong>Excellent DC bias performance</strong> — maintains permeability under significant DC magnetizing fields</li> </ul>

<p><em>Wire Specifications (typical production range):</em></p> <ul> <li>Diameter: Ø0.02 mm – Ø6.0 mm (fine wire to heavy rod)</li> <li>Form: bare wire, enameled wire (polyurethane/polyimide insulation), stranded Litz wire</li> <li>Condition: soft-annealed (in hydrogen atmosphere) for optimal magnetic properties</li> </ul>

<p><em>Primary Applications:</em> Magnetic amplifier cores, pulse transformer windings, magnetic recording heads, fluxgate sensor coils, magnetic shielding braids, ground fault interrupter (GFI) sensors, precision current transformers.</p>

<h2>1J85 (Нз80КМФ) — Maximum Permuability for Ultra-Sensitive Instruments</h2>

<p>If 1J79 doesn't provide enough permeability, <strong>1J85</strong> (Russian <strong>Нз80КМФ</strong>, similar to <strong>Supermalloy</strong>) delivers the ultimate in soft magnetic performance. With approximately 80% nickel, 5% molybdenum, and trace additions of manganese and silicon, 1J85 achieves:</p>

<p><strong>1J85 Key Magnetic Parameters:</strong></p> <table> <thead><tr><th>Parameter</th><th>1J79 Value</th><th>1J85 Value</th><th>Unit</th></tr></thead> <tbody> <tr><td>Initial permeability μᵢ</td><td>≥ 25,000</td><td>≥ 37,500 (up to 100,000+)</td><td>—</td></tr> <tr><td>Max permeability μₘ</td><td>≥ 100,000</td><td>≥ 300,000+</td><td>—</td></tr> <tr><td>Coercivity Hc</td><td>≤ 2.4</td><td>≤ 1.6</td><td>A/m</td></tr> <tr><td>Saturation flux density Bs</td><td>0.75</td><td>0.60</td><td>Tesla</td></tr> <tr><td>Resistivity ρ</td><td>0.55</td><td>0.56</td><td>μΩ·m</td></tr> </tbody> </table>

<p>The trade-off: 1J85 has lower saturation induction than 1J79 (0.60 T vs 0.75 T). Choose 1J85 when you need maximum sensitivity in weak-field detection; choose 1J79 when you need higher flux density handling capacity.</p>

<p><em>Flagship 1J85 Wire Applications:</em> Fluxgate magnetometer sensing elements (satellite navigation, aerospace compass), ultra-sensitive relay coils, magnetic card reader heads, thin-film sensor deposition source material, research-grade Helmholtz coil windings.</p>

<h2>3J53 (32НДК) — Constant-Elasticity (Elinvar) Alloy for Precision Frequency Control</h2>

<p><strong>3J53</strong> (Russian <strong>32НДК</strong>, equivalent to international <strong>Elinvar-type</strong> alloys) belongs to a different category entirely — it's not primarily a magnetic alloy but rather a <strong>constant-modulus / constant-elasticity alloy</strong> based on the Fe-Ni-Cr-Nb system (with Ti/Al precipitation-hardening agents).</p>

<p><strong>The Magic Property: Near-Zero Temperature Coefficient of Elastic Modulus</strong></p>

<p>Most metals soften as temperature rises — their Young's modulus decreases. This causes frequency drift in mechanical resonators (springs, tuning forks, vibrating elements). 3J53 defies this physics: its elastic modulus remains essentially constant over a temperature range of -40°C to +200°C (βE ≈ 0 ± 5×10⁻⁶/°C).</p>

<p><strong>3J53 Wire Characteristics &amp; Uses:</strong></p> <ul> <li><strong>Frequency stability:</strong> Temperature coefficient of resonance frequency βf can be tuned from negative through zero to positive via heat treatment — enabling precise compensation</li> <li><strong>High Q-factor mechanical vibration:</strong> Low internal friction → sharp resonance peaks → excellent frequency selectivity</li> <li><strong>Good non-magnetic properties:</strong> Low Curie temperature → paramagnetic at operating temps</li> <li><strong>Wire diameter range:</strong> Ø0.1 mm – Ø5.0 mm, supplied in spools or straightened-and-cut lengths</li> </ul>

<p><em>Killer Applications for 3J53 Wire:</em></p> <ul> <li><strong>Mechanical filter resonators</strong> — frequency-selective elements in communication equipment (military radios, aviation comms)</li> <li><strong>Watch and clock hairsprings</strong> — temperature-compensated balance springs for precision timekeeping</li> <li><strong>Pressure sensor diaphragms and Bourdon tubes</strong> — where elastic consistency across temperature is mandatory</li> <li><strong>Accelerometer and seismometer sensing elements</strong> — geophysical exploration, inertial navigation</li> <li><strong>Delay line wires</strong> — acoustic signal delay devices</li> </ul>

<h2>Manufacturing Process: How Hangbo Alloy Produces Premium Precision Wire</h2>

<p>Our precision alloy wire manufacturing follows a controlled process chain:</p>

<ol> <li><strong>Vacuum induction melting (VIM)</strong> — precise chemistry control, low gas content (O₂ &lt; 30 ppm)</li> <li><strong>Electroslag remelting (ESR)</strong> — clean steel structure, minimal inclusions</li> <li><strong>Hot forging &amp; rolling</strong> — break down ingot to intermediate rod</li> <li><strong>Cold drawing</strong> — multi-pass diamond-die drawing with interpass annealing</li> <li><strong>Final annealing</strong> — dry hydrogen atmosphere furnace for optimal magnetic/mechanical properties</li> <li><strong>Surface finishing</strong> — polishing, coating (optional enamel/PFA insulation), spooling</li> <li><strong>100% testing</strong> — dimensional, magnetic (permeability, coercivity), mechanical (tensile)</li> </ol>

<h2>Technical Data Sheets &amp; Sample Requests</h2>

<p>Hangbo Alloy stocks 1J79, 1J85, and 3J53 wire in standard diameters ready for immediate dispatch. Custom sizes, insulation types, and heat-treatment conditions are available with short lead times (typically 2–3 weeks).</p>

<p>To request a <strong>free sample coil</strong> (up to 5 meters for evaluation), technical datasheet, or quotation:</p>

<ul> <li>Submit an online RFQ: <a href="https://www.hangbo-metal.com/contact">www.hangbo-metal.com/contact</a></li> <li>Email: <a href="mailto:Craliey1382@gmail.com">Craliey1382@gmail.com</a></li> <li>WhatsApp / WeChat: +86 19169850074</li> </ul>

<p>Please specify: alloy grade (1J79/1J85/3J53), required diameter(s), quantity (kg or meters), insulation requirement (bare/enamel/Litz), target application, and delivery location. Our metallurgical engineering team will respond within 24 hours with full technical support.</p>
